Thursday, September 16, 2010

MATLAB to F# Part 1

So I bought the book and brought it home. I couldn't wait to get started but life came into the picture so I had to help make dinner with the wife and kids and then eat dinner. After getting the kids into bed and watching the first five minutes of the wife's favorite T.V. show with her I finally got a chance to come down stairs and get into this a little bit. So, not having any experience with MATLAB I decided to start from the beginning of the book and work my way forward. Since this is MATLAB we need to familiarize ourselves with a few core data structures that will be used heavily through out MATLAB. Vectors & Matrices. In MATLAB vectors are just a simple list in F# and Matrices are essentially tables of vectors also known as list of list in F#.  Let start with a few simple examples from chapter 1 of the book.

1.5.1 Creating Row Vectors
There are several ways to create row vector variables. The most direct way is to put the values that you want
in the vector in square brackets, separated by either spaces or commas.
>> v  = [1 2 3 4]
v  =
    1   2   3   4

1.5.2 Creating Column Vectors
One way to create a column vector is by explicitly putting values in square brackets, separated by semicolons:
>> c  = [1; 2; 3; 4]
c =

1.5.2 Creating Matrix Variables
Creating a matrix variable is really just a generalization of creating row and column vector variables.
The matrix variable mat is created by explicitly typing the values.
>> mat  = [4 3 1; 2 5 6]
mat  =
       4   3   1
       2   5   6

These core data structures are built in to F#, well the F# Powerpack.
So you can find the F# powerpack at codeplex. Once you download it you can easily open up a script file
and start creating your own vectors and matrices.

#r @"C:\Program Files (x86)\FSharpPowerPack-\bin\FSharp.PowerPack.dll"

open Microsoft.FSharp.Math

Creating Row Vectors (in F#)
let rowvector  =  [1.0; 2.0; 3.0; 4.0]
Creating Column Vectors (in F#)
let onecolumnvector  = Matrix.ofList [[1.0];[2.0];[3.0];[4.0]]
Creating a Matrix (in F#)
let matrix = Matrix.ofList [[4.0;3.0;1.0]; [2.0;5.0;6.0]]

With the simple stuff out of the way I wanted to go a little deeper... so on to chapter 2 (Graphical Displays).
Now that we know how to create the data let's do something interesting with it... e.g. visualize it!
One way to visualize the data is to display it on a standard 2D chart with X and Y coordinates. In MATLAB you'd typically use the "built in" Plot function which (by definition thus far) can plot a single x,y coordinate or optionally two vectors of coordinates representing x and y.  So in MATLAB will create a couple of vectors representing x and y. To do this we lay down the following expression :

>> x  =  1:6;
>> y  =  [1  5  3  9  11  8]
The x vector above may look a little strange but basically what were doing is creating a vector from 1 to 6 with a step of 1. So the x and y column vectors above would look like this in the MATLAB command window.

 x , y
(1 , 1)
(2, 5)
(3, 3)
(4, 9)
(5, 11)
(6, 8)

Finally, we'd plot the vectors with the following expression :
>> plot (x , y)

It's worth noting that under the covers MATLAB is actually creating a 2D chart, plotting all the points or coordinates in both vectors, and then displays the 2D chart in a new window.

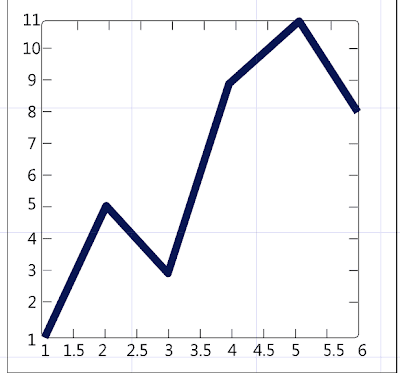

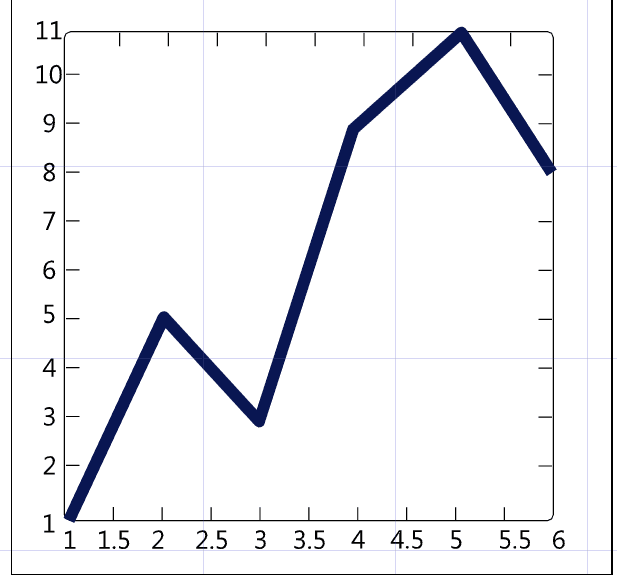

Here is the following MATLAB output.

Not to shabby, of course we could accomplish the same thing in .NET using F# and WPF.
So I thought about it and decided I did not want to write my own charting component just for the
blog post series. Especially since I've had the first build (and free release) of Visifire for WPF & Silverlight still laying around on my hard drive. :-)

So with the decision made to leverage visifire I produced the following F# code below :

#r  @"C:\\Users\\cfrederick\\Documents\\Visual Studio 2010\\Projects\\MATLAB Discoveries\\lib\\visifire\\WPFVisifire.Charts.dll"
#r  @"C:\\Program Files (x86)\\Reference Assemblies\\Microsoft\\Framework\\v3.0\\PresentationFramework.dll"
#r  @"C:\\Program Files (x86)\\Reference Assemblies\\Microsoft\\Framework\\v3.0\\WindowsBase.dll"
#r  @"C:\\Program Files (x86)\\Reference Assemblies\\Microsoft\\Framework\\v3.0\\PresentationCore.dll"

open System
(*Charting references*)
open Visifire.Charts
open System.Windows
open System.Windows.Controls

//Plot function, used to plot a single data point
let plot x y =
    let dp = new DataPoint()
    dp.XValue <- x
    dp.YValue <- y

let createChart xs ys =
  let chart = new Chart()
  let title = new Title()
  title.Text <- "MATLAB Sample Plotting Chart"
  chart.Titles.Add title
  chart.Watermark <- false

  let data =
   let dataseries = new DataSeries()
   dataseries.RenderAs <- RenderAs.Line xs ys
     |> (x,y) -> plot x y)
     |> List.iter(fun dp -> dataseries.DataPoints.Add dp)
    chart.Series.Add data
let content =
createChart [1.0..6.0] [1.0;5.0;3.0;9.0;11.0;8.0]
let window = new Window(Title = "Fun plotting like MATLAB", Content = content)
[] ignore <| (new Application()).Run window

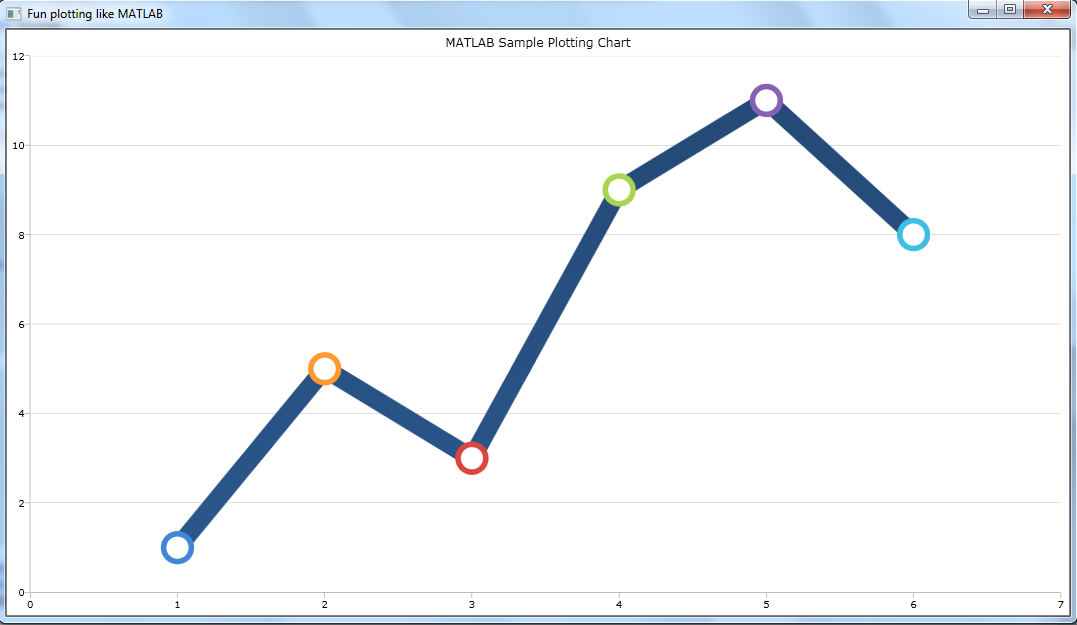

And here is the final output from FSI and VS2010.

Thursday, September 9, 2010

Introducing MATLAB -> ( F# & WPF ) Series

My latest purchase a few days ago was at Borders book store. I went in the store looking for a specific WPF charting book which covers visualizing mathematical formulas. No such luck. However, after turning my attention to the core computer science section, I found the following book on MATLAB (short for" matrix laboratory"). I was never really strong in math and this book seems to be a nice self guided introduction which works up to some advanced data analysis/visualizations. Since I'm constantly looking for core computer science type approaches from a functional perspective I figured this is a good choice. My plan is to obviously teach myself MATLAB but also translate the MATLAB functions over to F# and move the graphical stuff over to WPF. For the last 8 years I've been doing hardcore imperative programming using mainstream languages. More and more every day I wish I where doing functional programming using (F# of course) or something like ML,OCaml, or dare I say Haskell. My long term plan is to teach myself core functional programming so that I can get a job which safely transitions into the functional programming world. My dream job would be to write core functional programs while having the freedom to visualize them using a great presentation framework like WPF.  As the title says, I will be going through the chapters & exercises and presenting them here. I will take as much time as I can to produce good quality posts on this topic. You can expect the format to be something like the following: MATLAB source and screen shots( if any), followed by F# source, followed by WPF screen shots. Any way, I'm looking forward to learning MATLAB and sharing my discoveries here on my blog.

-Stay tuned and keep on dev'n
